Part number:
2CL4510
Manufacturer:
SiPower
File Size:
52.18 KB
Description:
High voltage diodes.

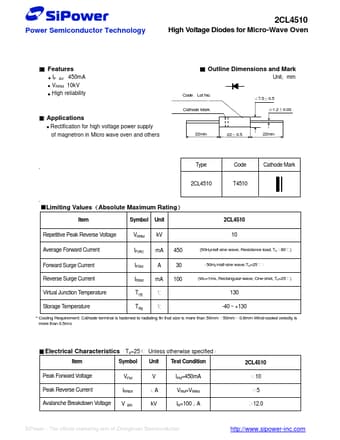

* IF AV 450mA VRRM 10kV High reliability Applications Rectification for high voltage power supply of magnetron in Micro wave oven and others Outline Dimensions and Mark Unit mm Code Lot No. Cathode Mark 7.5 0.5 1.2 0.03 22min 22 0.5 22min . Type Code Cathode Mark 2CL4510 T4510 . Limiting
2CL4510
SiPower
52.18 KB
High voltage diodes.
