2CL4512

(2CL4509 / 2CL4512) High Voltage Diodes

2CL4512 Features

* IF AV 450mA VRRM 9kV ,12kV High reliability Outline Dimensions and Mark Unit mm Code Lot No. Cathode Mark 7.5 0.5 1.2 0.03 Applications Rectification for high voltage power supply of magnetron in Micro wave oven and others 22min 22 0.5 22min Type . 2CL4509 2CL4512 Code T4509 T4512 Cathode Mar

2CL4512 Datasheet (67.12 KB)

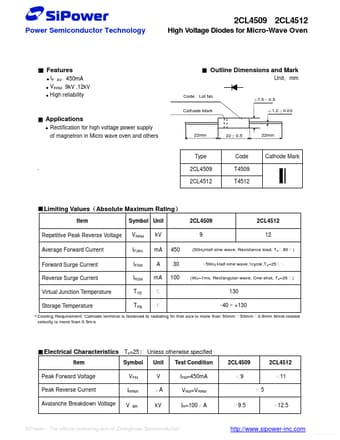

Preview of 2CL4512 PDF

Datasheet Details

Part number:

2CL4512

Manufacturer:

SiPower

File Size:

67.12 KB

Description:

(2cl4509 / 2cl4512) high voltage diodes.
