4N32 Datasheet - Siemens Semiconductor Group

PHOTODARLINGTON OPTOCOUPLER

4N32 Features

* Very High Current Transfer Ratio, 500% Min.

* High Isolation Resistance, 1011 Ω Typical

* Standard Plastic DIP Package

* Underwriters Lab File #E52744

* V VDE Approvals #0884 (Available with Option 1) D E Dimensions in inches (mm) Pin One ID. 3 .248 (6.30)

4N32 General Description

The 4N32 and 4N33 are optically coupled isolators with a Gallium Arsenide infrared LED and a silicon photodarlington sensor. Switching can be achieved while maintaining a high degree of isolation between driving and load circuits. These optocouplers can be used to replace reed and mercury relays wit.

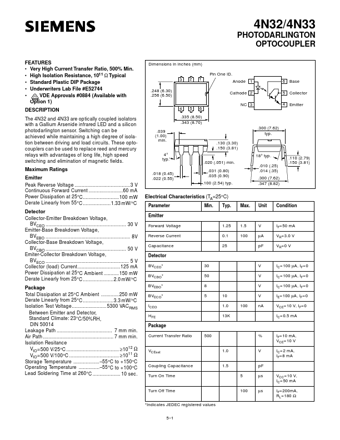

4N32 Datasheet (44.05 KB)

4N32 Datasheet Preview — Preview of 4N32 PDF

Datasheet Details

Part number:

4N32

Manufacturer:

Siemens Semiconductor Group

File Size:

44.05 KB

Description:

Photodarlington optocoupler.
