BCR108 Datasheet - Siemens Semiconductor Group

BCR108 NPN Silicon Digital Transistor

BCR 108 NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=2.2kΩ, R2=47kΩ) Type BCR 108 Marking Ordering Code WHs Q62702-C2253 Pin Configuration 1=B 2=E 3=C Package SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 102°C Junction temperature Storage temperature Symbol Values 50 50 5 .

BCR108_SiemensSemiconductorGroup.pdf

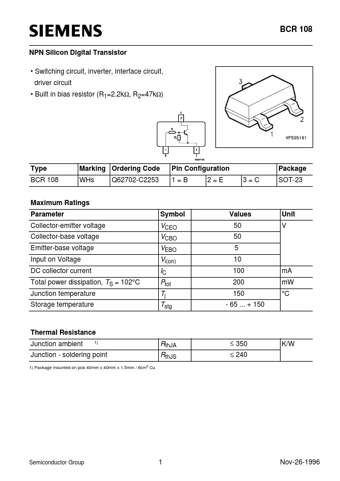

Preview of BCR108 PDF
BCR108 Datasheet Preview Page 2 BCR108 Datasheet Preview Page 3

Datasheet Details

Part number:

BCR108

Manufacturer:

Siemens Semiconductor Group

File Size:

35.40 KB

Description:

Npn silicon digital transistor.
