BCR108W Datasheet - Siemens Semiconductor Group

BCR108W NPN Silicon Digital Transistor

BCR 108W NPN Silicon Digital Transistor Switching circuit, inverter, interface circuit, driver circuit Built in bias resistor (R1=2.2kΩ, R2=47kΩ) Type BCR 108W Marking Ordering Code WHs Q62702-C2275 Pin Configuration 1=B 2=E 3=C Package SOT-323 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power dissipation, TS = 124°C Junction temperature Storage temperature Symbol Values 50 50.

BCR108W_SiemensSemiconductorGroup.pdf

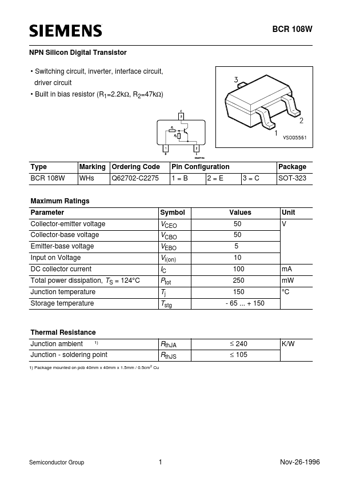

Preview of BCR108W PDF
BCR108W Datasheet Preview Page 2 BCR108W Datasheet Preview Page 3

Datasheet Details

Part number:

BCR108W

Manufacturer:

Siemens Semiconductor Group

File Size:

34.85 KB

Description:

Npn silicon digital transistor.
