BSM150GB170DN2E3166 IGBT

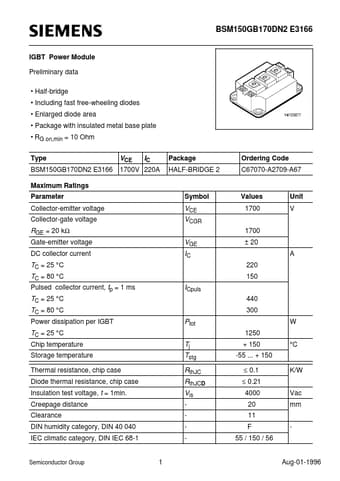

BSM150GB170DN2 E3166 IGBT Power Module Preliminary data Half-bridge Including fast free-wheeling diodes Enlarged diode area Package with insulated metal base plate RG on,min = 10 Ohm Type BSM150GB170DN2 E3166 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1700 1700 Unit V VCE IC Package HALF-BRIDGE 2 Ordering Code C67070-A2709-A67 1700V 220A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC coll.

BSM150GB170DN2E3166_SiemensSemiconductorGroup.pdf

Preview of BSM150GB170DN2E3166 PDF
BSM150GB170DN2E3166 Datasheet Preview Page 2 BSM150GB170DN2E3166 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM150GB170DN2E3166

Manufacturer:

Siemens Semiconductor Group

File Size:

129.89 KB

Description:

Igbt.
