BSM50GB170DN2 IGBT

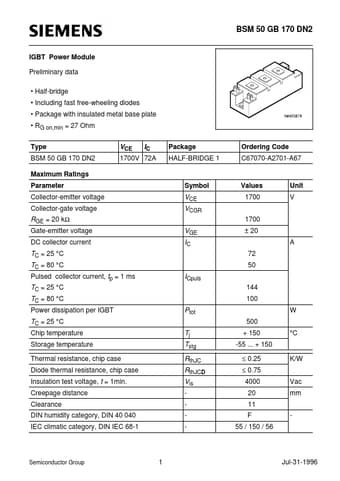

BSM 50 GB 170 DN2 IGBT Power Module Preliminary data Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate RG on,min = 27 Ohm Type BSM 50 GB 170 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1700 1700 Unit V VCE IC Package HALF-BRIDGE 1 Ordering Code C67070-A2701-A67 1700V 72A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 72 50 TC = 25 .

BSM50GB170DN2_SiemensSemiconductorGroup.pdf

Preview of BSM50GB170DN2 PDF
BSM50GB170DN2 Datasheet Preview Page 2 BSM50GB170DN2 Datasheet Preview Page 3

Datasheet Details

Part number:

BSM50GB170DN2

Manufacturer:

Siemens Semiconductor Group

File Size:

112.63 KB

Description:

Igbt.
