BSM75GB120DN2 Datasheet - Siemens Semiconductor Group

BSM75GB120DN2 IGBT

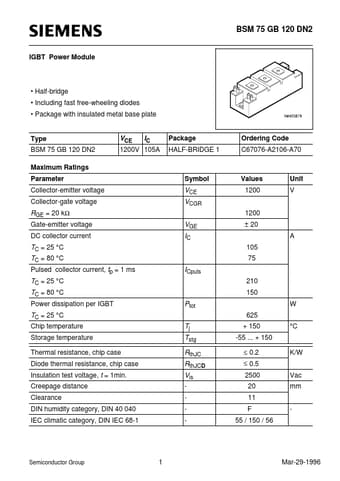

BSM 75 GB 120 DN2 IGBT Power Module Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate Type BSM 75 GB 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage VCE IC Package HALF-BRIDGE 1 Ordering Code C67076-A2106-A70 1200V 105A Symbol Values 1200 1200 Unit V VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 105 75 TC = 25 °C TC = 80 °C Pulsed collector current,.
