BSM75GD120DN2 Datasheet - Siemens Semiconductor Group

BSM75GD120DN2 IGBT

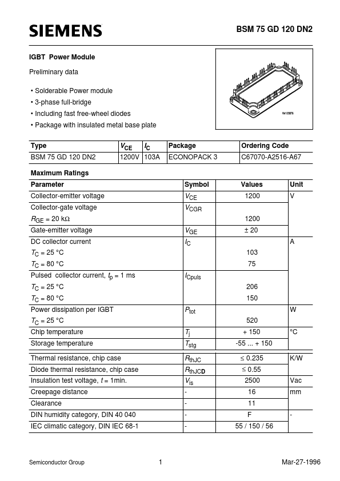

BSM 75 GD 120 DN2 IGBT Power Module Preliminary data Solderable Power module 3-phase full-bridge Including fast free-wheel diodes Package with insulated metal base plate Type BSM 75 GD 120 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1200 1200 Unit V VCE IC Package ECONOPACK 3 Ordering Code C67070-A2516-A67 1200V 103A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 103 75.
