BSM75GB170DN2 Datasheet - Siemens Semiconductor Group

BSM75GB170DN2 IGBT

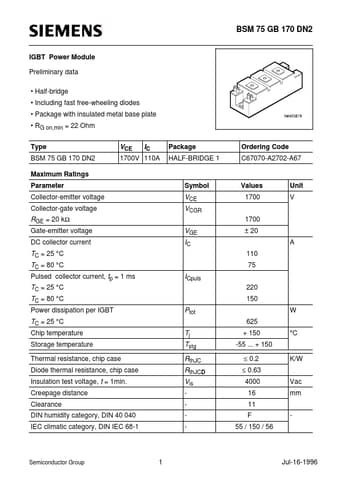

BSM 75 GB 170 DN2 IGBT Power Module Preliminary data Half-bridge Including fast free-wheeling diodes Package with insulated metal base plate RG on,min = 22 Ohm Type BSM 75 GB 170 DN2 Maximum Ratings Parameter Collector-emitter voltage Collector-gate voltage Symbol Values 1700 1700 Unit V VCE IC Package HALF-BRIDGE 1 Ordering Code C67070-A2702-A67 1700V 110A VCE VCGR VGE IC RGE = 20 kΩ Gate-emitter voltage DC collector current ± 20 A 110 75 TC = 2.
