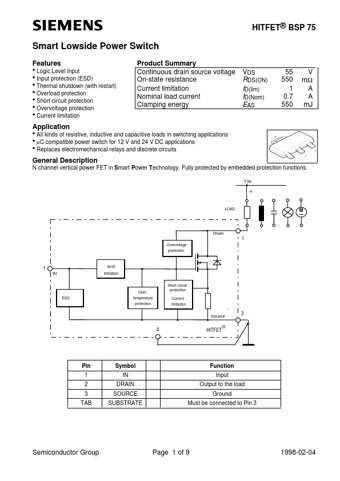

BSP75 Datasheet (Siemens Semiconductor Group)

BSP75, Smart Lowside Power Switch

N channel vertical power FET in Smart Power Technology.

Fully protected by embedded protection functions.

V bb + LOAD M Drain 2 Overvoltage protection 1 IN dv/dt limitation Short circuit protection Short circuit Current protection limitation Source ESD Overtemperature protection 3 4 ® HITFE

BSP75 Features

* Logic Level Input

* Input protection (ESD)

* Thermal shutdown (with restart)

* Overload protection

* Short circuit protection

* Overvoltage protection

* Current limitation Product Summary Continuous drain source voltage On-state resistance C
