BSP752R

Smart Power High-Side-Switch

BSP752R Features

* Overload protection

* Current limitation

* Short circuit protection

* Thermal shutdown with restart

* Fast demagnetization of inductive loads

* Reverse battery protection with external resistor

* Open drain diagnostic output for overtemperatu

BSP752R General Description

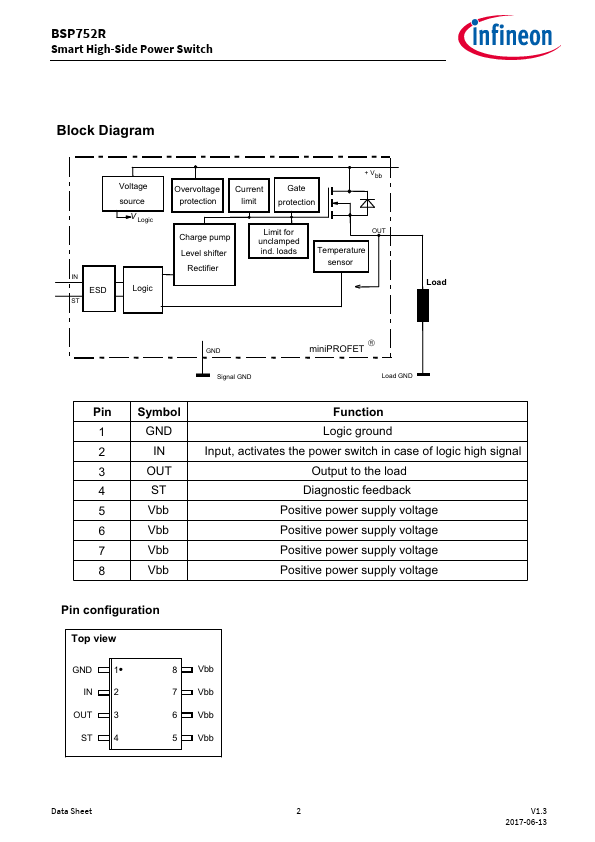

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS  technology. Providing embedded protective functions. Page 1 2004-01-27 BSP 752 R Block Diagram + V bb Voltage source V Logic Overvoltage p.

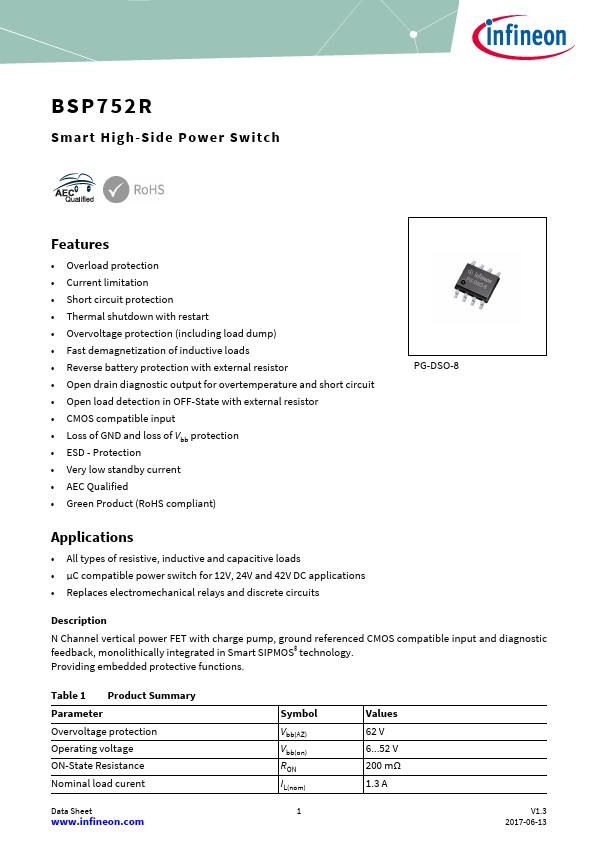

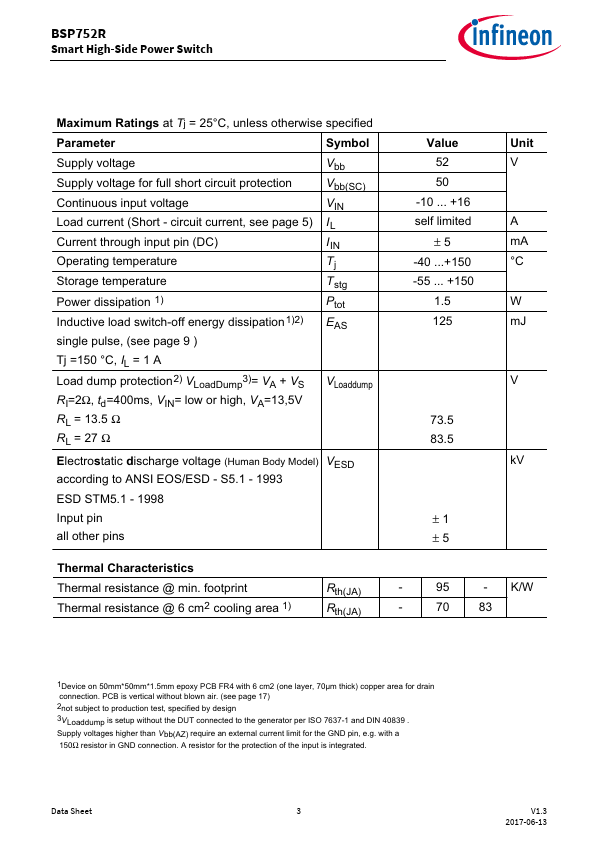

BSP752R Datasheet (379.30 KB)

Preview of BSP752R PDF

Datasheet Details

Part number:

BSP752R

Manufacturer:

Infineon ↗ Technologies AG

File Size:

379.30 KB

Description:

Smart power high-side-switch.
