BSP742RI

Smart Power High-Side-Switch

BSP742RI Features

* Overload protection

* Current limitation

* Short circuit protection

* Thermal shutdown with restart

* Fast demagnetization of inductive loads

* Reverse battery protection with external resistor

* Open drain diagnostic output

* CMOS co

BSP742RI General Description

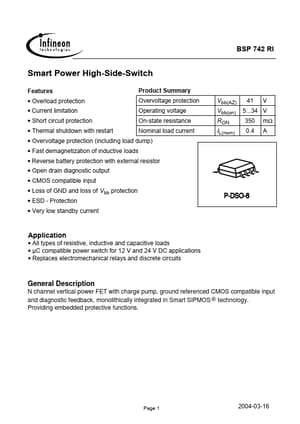

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS  technology. Providing embedded protective functions. Page 1 2004-03-16 BSP 742 RI Block Diagram + Vbb Voltage source V Logic Overvoltage p.
