BSP76 Datasheet - Infineon Technologies AG

Smart Lowside Power Switch

BSP76 Features

* Logic Level Input

* Input Protection (ESD)

* Thermal shutdown with auto restart

* Overload protection

* Short circuit protection

* Overvoltage protection

* Current limitation

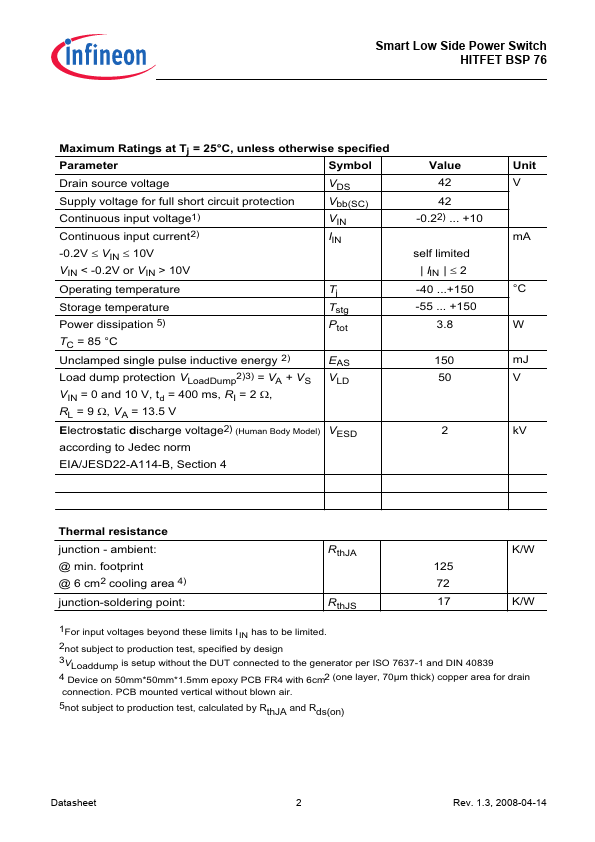

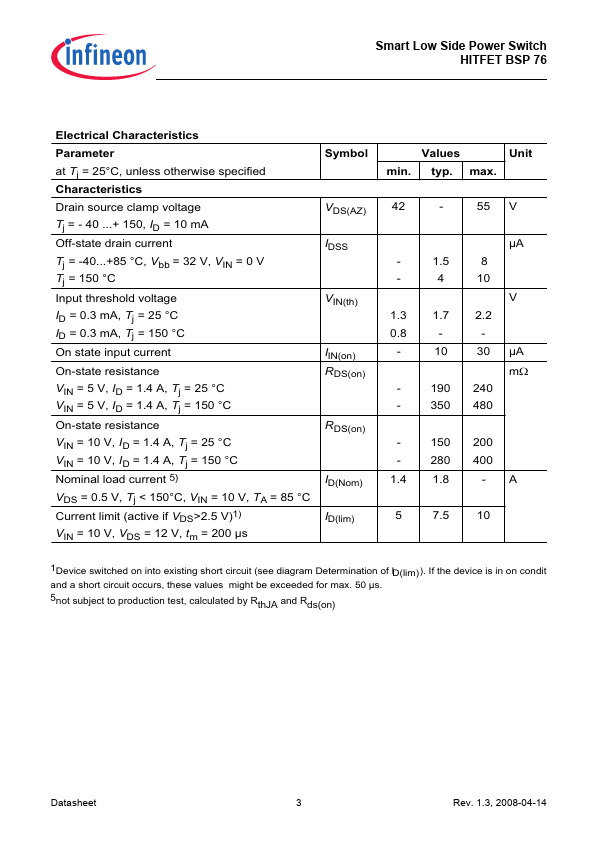

* Analog driving possible 2 1 VPS05163 Product Summary Drain source voltage On-state resis

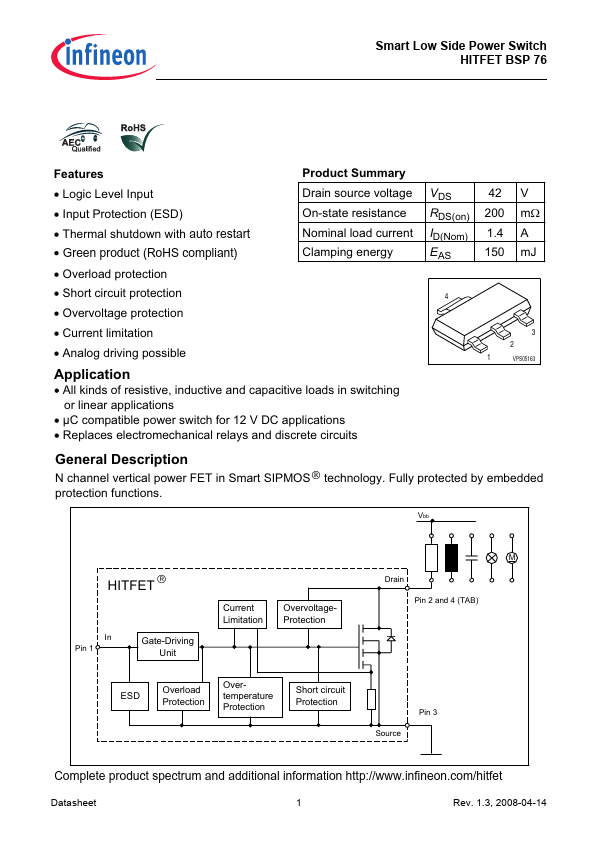

BSP76 General Description

N channel vertical power FET in Smart SIPMOS Ò technology. Fully protected by embedded protection functions. Vbb M HITFET â Current Limitation In Pin 1 Drain OvervoltageProtection Pin 2 and 4 (TAB) Gate-Driving Unit Overtemperature Protection ESD Overload Protection Short circuit Protection.
