BSP742T

Smart Power High-Side-Switch

BSP742T Features

* Overload protection

* Current limitation

* Short circuit protection

* Thermal shutdown with restart

* Fast demagnetization of inductive loads

* Reverse battery protection with external resistor

* CMOS compatible input

* Loss of GND an

BSP742T General Description

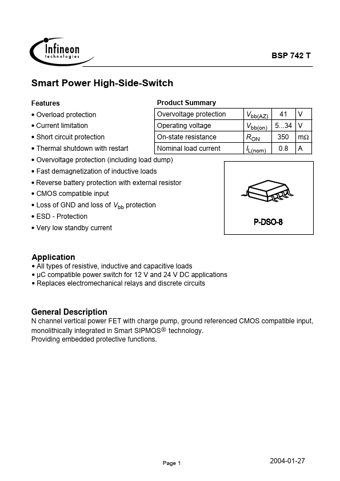

N channel vertical power FET with charge pump, ground referenced CMOS compatible input, monolithically integrated in Smart SIPMOS technology. Providing embedded protective functions. Page 1 2004-01-27 BSP 742 T Block Diagram + V bb Voltage source V Logic Overvoltage protection Current limit .

BSP742T Datasheet (358.30 KB)

Preview of BSP742T PDF

Datasheet Details

Part number:

BSP742T

Manufacturer:

Infineon ↗ Technologies AG

File Size:

358.30 KB

Description:

Smart power high-side-switch.
