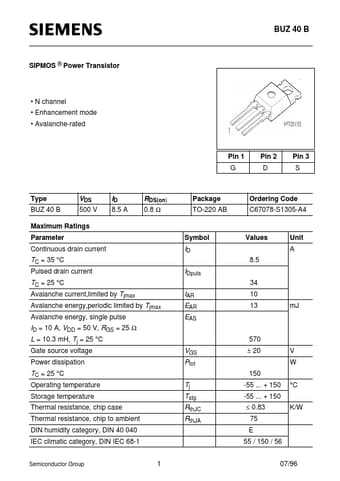

BUZ 40 B
SIPMOS ® Power Transistor
• N channel • Enhancement mode • Avalanche-rated
Pin 1 G
Pin 2 D
Pin 3 S
Type BUZ 40 B
VDS
500 V
ID
8.5 A
RDS(on)
0.8 Ω
Package TO-220 AB
Ordering Code C67078-S1305-A4
Maximum Ratings Parameter Continuous drain current Symbol Values 8.5 Unit A
ID IDpuls
34
TC = 35 °C
Pulsed drain current
TC = 25 °C
Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse
IAR EAR EAS
10 13 mJ
ID = 10 A, VDD = 50 V, RGS = 25 Ω L = 10.
