BUZ90 Datasheet - Siemens Semiconductor Group

BUZ90 Power Transistor

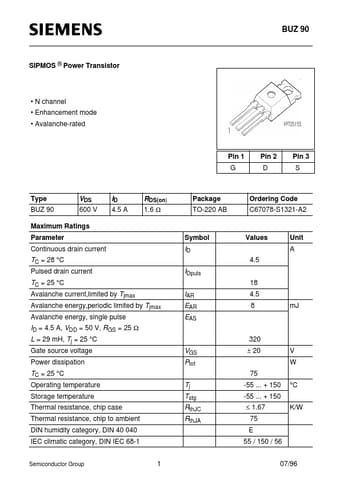

BUZ 90 SIPMOS ® Power Transistor N channel Enhancement mode Avalanche-rated Pin 1 G Pin 2 D Pin 3 S Type BUZ 90 VDS 600 V ID 4.5 A RDS(on) 1.6 Ω Package TO-220 AB Ordering Code C67078-S1321-A2 Maximum Ratings Parameter Continuous drain current Symbol Values 4.5 Unit A ID IDpuls 18 TC = 28 °C Pulsed drain current TC = 25 °C Avalanche current,limited by Tjmax Avalanche energy,periodic limited by Tjmax Avalanche energy, single pulse IAR EAR EAS 4.5 8 m.
