BYP100 Datasheet - Siemens Semiconductor Group

BYP100 FRED Diode (Fast recovery epitaxial diode Soft recovery characteristics)

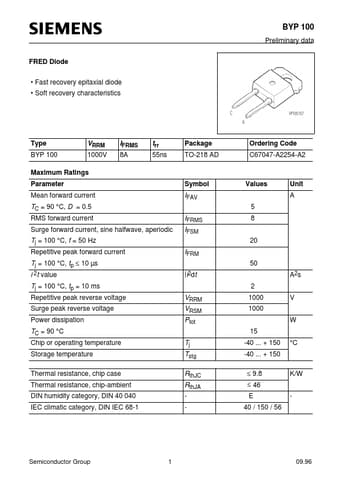

BYP 100 Preliminary data FRED Diode Fast recovery epitaxial diode Soft recovery characteristics Type BYP 100 VRRM 1000V IFRMS 8A trr 55ns Package TO-218 AD Ordering Code C67047-A2254-A2 Maximum Ratings Parameter Mean forward current Symbol Values 5 Unit A 8 20 IFAV IFRMS IFSM IFRM 50 ∫i2dt 2 TC = 90 °C, D = 0.5 RMS forward current Surge forward current, sine halfwave, aperiodic Tj = 100 °C, f = 50 Hz Repetitive peak forward current Tj = 100 °C, tp ≤ 10 µs i 2t valu.

BYP100_SiemensSemiconductorGroup.pdf

BYP100 Datasheet Preview — Preview of BYP100 PDF

Datasheet Details

Part number:

BYP100

Manufacturer:

Siemens Semiconductor Group

File Size:

19.95 KB

Description:

Fred diode (fast recovery epitaxial diode soft recovery characteristics).
