BYP101 Datasheet - Siemens Semiconductor Group

BYP101 FRED Diode (Fast recovery epitaxial diode Soft recovery characteristics)

BYP 101 FRED Diode Fast recovery epitaxial diode Soft recovery characteristics Type BYP 101 VRRM 1000V IFRMS 25A trr 80ns Package TO-218 AD Ordering Code C67047-A2072-A2 Maximum Ratings Parameter Mean forward current Symbol Values 15 Unit A 25 70 IFAV IFRMS IFSM IFRM 150 ∫i2dt 25 TC = 90 °C, D = 0.5 RMS forward current Surge forward current, sine halfwave, aperiodic Tj = 100 °C, f = 50 Hz Repetitive peak forward current Tj = 100 °C, tp ≤ 10 µs i 2t value Tj = 100 .

BYP101_SiemensSemiconductorGroup.pdf

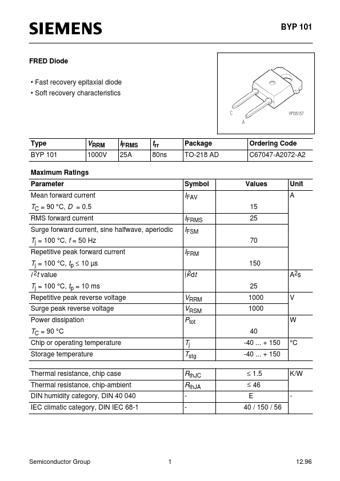

BYP101 Datasheet Preview — Preview of BYP101 PDF

Datasheet Details

Part number:

BYP101

Manufacturer:

Siemens Semiconductor Group

File Size:

25.48 KB

Description:

Fred diode (fast recovery epitaxial diode soft recovery characteristics).
