BYP102 Datasheet - Siemens Semiconductor Group

BYP102 FRED Diode (Fast recovery epitaxial diode Soft recovery characteristics)

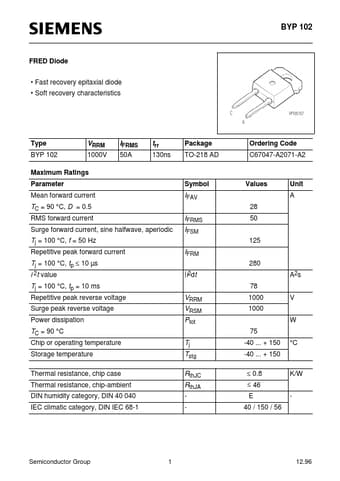

BYP 102 FRED Diode Fast recovery epitaxial diode Soft recovery characteristics Type BYP 102 VRRM 1000V IFRMS 50A trr 130ns Package TO-218 AD Ordering Code C67047-A2071-A2 Maximum Ratings Parameter Mean forward current Symbol Values 28 Unit A 50 125 IFAV IFRMS IFSM IFRM 280 ∫i2dt 78 TC = 90 °C, D = 0.5 RMS forward current Surge forward current, sine halfwave, aperiodic Tj = 100 °C, f = 50 Hz Repetitive peak forward current Tj = 100 °C, tp ≤ 10 µs i 2t value Tj = 10.

BYP102_SiemensSemiconductorGroup.pdf

BYP102 Datasheet Preview — Preview of BYP102 PDF

Datasheet Details

Part number:

BYP102

Manufacturer:

Siemens Semiconductor Group

File Size:

25.82 KB

Description:

Fred diode (fast recovery epitaxial diode soft recovery characteristics).
