BYP103 FRED Diode (Fast recovery epitaxial diode Soft recovery characteristics)

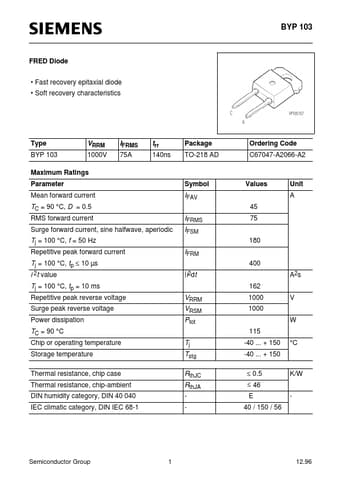

BYP 103 FRED Diode Fast recovery epitaxial diode Soft recovery characteristics Type BYP 103 VRRM 1000V IFRMS 75A trr 140ns Package TO-218 AD Ordering Code C67047-A2066-A2 Maximum Ratings Parameter Mean forward current Symbol Values 45 Unit A 75 180 IFAV IFRMS IFSM IFRM 400 ∫i2dt 162 TC = 90 °C, D = 0.5 RMS forward current Surge forward current, sine halfwave, aperiodic Tj = 100 °C, f = 50 Hz Repetitive peak forward current Tj = 100 °C, tp ≤ 10 µs i 2t value Tj = 1.

BYP103_SiemensSemiconductorGroup.pdf

BYP103 Datasheet Preview — Preview of BYP103 PDF

Datasheet Details

Part number:

BYP103

Manufacturer:

Siemens Semiconductor Group

File Size:

25.87 KB

Description:

Fred diode (fast recovery epitaxial diode soft recovery characteristics).
