IL212 PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

📥 Download Datasheet  Datasheet Preview Page 1

Description

IL211AT/IL212AT/IL213AT .
The IL211AT/212AT/213AT are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor.

📥 Download Datasheet

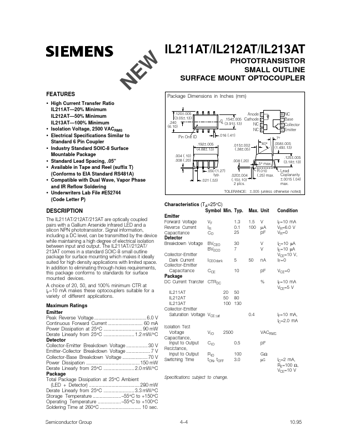

Preview of IL212 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IL212
Manufacturer
Siemens Semiconductor Group
File Size
44.77 KB
Datasheet
IL212_SiemensSemiconductorGroup.pdf
Description
PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

Features

* N EW
* High Current Transfer Ratio IL211AT
* 20% Minimum IL212AT
* 50% Minimum IL213AT
* 100% Minimum Isolation Voltage, 2500 VACRMS Electrical Specifications Similar to Standard 6 Pin Coupler Industry Standard SOIC-8 Surface Mountable Package Standard Lead Spacing, .05" A

Applications

* with limited space. In addition to eliminating through-holes requirements, this package conforms to standards for surface mounted devices. A choice of 20, 50, and 100% minimum CTR at IF=10 mA makes these optocouplers suitable for a variety of different applications. Maximum Ratings Emitter Peak Reve
