IL212AT

PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

IL212AT Features

* N EW

* High Current Transfer Ratio IL211AT

* 20% Minimum IL212AT

* 50% Minimum IL213AT

* 100% Minimum Isolation Voltage, 2500 VACRMS Electrical Specifications Similar to Standard 6 Pin Coupler Industry Standard SOIC-8 Surface Mountable Package Standard Lead Spacing, .05" A

IL212AT General Description

The IL211AT/212AT/213AT are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL211AT//212AT/.

IL212AT Datasheet (44.77 KB)

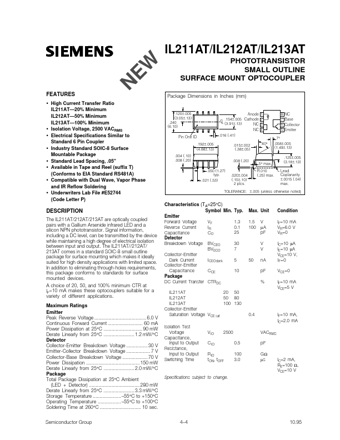

Preview of IL212AT PDF

Datasheet Details

Part number:

IL212AT

Manufacturer:

Siemens Semiconductor Group

File Size:

44.77 KB

Description:

Phototransistor small outline surface mount optocoupler.
