IL212A

PHOTOTRANSISTOR SMALL OUTLINE SURFACE MOUNT OPTOCOUPLER

IL212A Features

* High Current Transfer Ratio IL211A

* 20% Minimum IL212A

* 50% Minimum IL213A

* 100% Minimum

* Isolation Voltage, 2500 VACRMS

* Electrical Specifications Similar to Standard 6 Pin Coupler

* Industry Standard SOIC-8 Surface Mountable Package

IL212A General Description

The IL211A/212A/213A are optically coupled pairs with a Gallium Arsenide infrared LED and a silicon NPN phototransistor. Signal information, including a DC level, can be transmitted by the device while maintaining a high degree of electrical isolation between input and output. The IL211A//212A/213A .

IL212A Datasheet (46.43 KB)

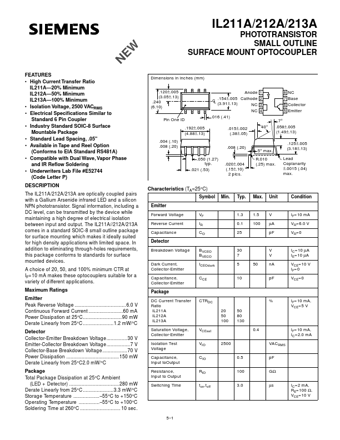

Preview of IL212A PDF

Datasheet Details

Part number:

IL212A

Manufacturer:

Siemens Semiconductor Group

File Size:

46.43 KB

Description:

Phototransistor small outline surface mount optocoupler.
