Q62702-A1103 Datasheet - Siemens Semiconductor Group

Q62702-A1103 Silicon Schottky Diode

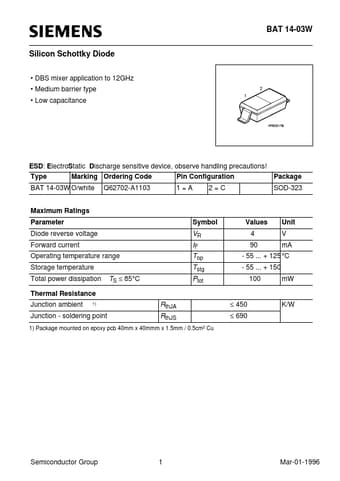

BAT 14-03W Silicon Schottky Diode DBS mixer application to 12GHz Medium barrier type Low capacitance ESD: ElectroStatic Discharge sensitive device, observe handling precautions! Type Marking Ordering Code Q62702-A1103 Pin Configuration 1=A 2=C Package SOD-323 BAT 14-03W O/white Maximum Ratings Parameter Diode reverse voltage Forward current Operating temperature range Storage temperature Total power dissipation Thermal Resistance Junction ambient 1) Symbol Values.

Q62702-A1103_SiemensSemiconductorGroup.pdf

Q62702-A1103 Datasheet Preview — Preview of Q62702-A1103 PDF

Datasheet Details

Part number:

Q62702-A1103

Manufacturer:

Siemens Semiconductor Group

File Size:

36.48 KB

Description:

Silicon schottky diode.
