Q62702-C1474 Datasheet - Siemens Semiconductor Group

Q62702-C1474 NPN Silicon Darlington Transistors (For general AF applications High collector current)

NPN Silicon Darlington Transistors BCV 27 BCV47 For general AF applications q High collector current q High current gain q Complementary types: BCV 26, BCV 46 (PNP) q Type BCV 27 BCV 47 Marking FFs FGs Ordering Code (tape and reel) Q62702-C1474 Q62702-C1501 Pin Configuration 1 2 3 B E C Package1) SOT-23 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Collector current Peak collector current Base current Peak base current Total power dissipa.

Q62702-C1474 Datasheet (140.64 KB)

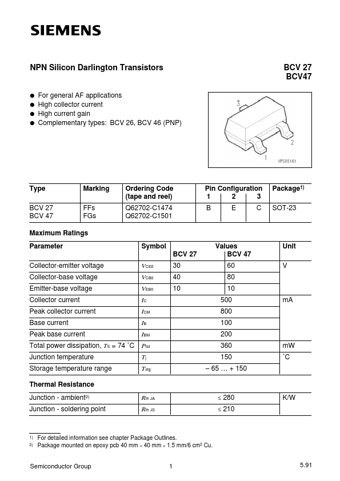

Q62702-C1474 Datasheet Preview — Preview of Q62702-C1474 PDF

Datasheet Details

Part number:

Q62702-C1474

Manufacturer:

Siemens Semiconductor Group

File Size:

140.64 KB

Description:

Npn silicon darlington transistors (for general af applications high collector current).
