Q62702-C1857 - PNP Silicon AF Transistors

Siemens Semiconductor Group

Datasheet Details

Part number	Q62702-C1857
Manufacturer	Siemens Semiconductor Group
File Size	146.11 KB
Description	PNP Silicon AF Transistors
Datasheet	Q62702-C1857_SiemensSemiconductorGroup.pdf

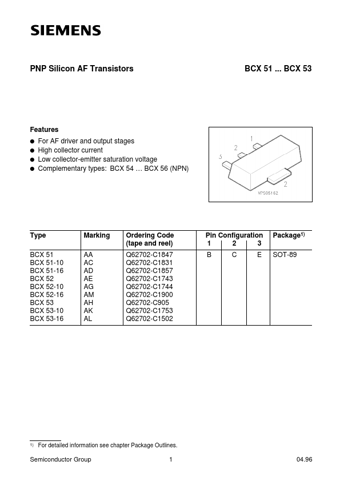

For AF driver and output stages q High collector current q Low collector-emitter saturation voltage q Complementary types: BCX 54 … BCX 56 (NPN) q Type BCX 51 BCX 51-10 BCX 51-16 BCX 52 BCX 52-10 BCX 52-16 BCX 53 BCX 53-10 BCX 53-16 Marking AA AC AD AE AG AM AH AK AL Ordering Code (tape and reel) Q62702-C1847 Q62702-C1831 Q62702-C1857 Q62702-C1743 Q62702-C1744 Q62702-C1900 Q62702-C905 Q62702-C1753 Q62702-C1502 Pin Configuration 1 2 3 B C E Package1) SOT-89 1) For detailed information see.
