Q62702-C2130 PNP Silicon AF Transistor (For general AF application High collector current High current gain)

PNP Silicon AF Transistor q q q q q BCP 69 For general AF application High collector current High current gain Low collector-emitter saturation voltage Complementary type: BCP 68 (NPN) Type BCP 69 BCP 69-10 BCP 69-16 BCP 69-25 Marking BCP 69 BCP 69-10 BCP 69-16 BCP 69-25 Ordering Code (tape and reel) Q62702-C2130 Q62702-C2131 Q62702-C2132 Q62702-C2133 Pin Configuration 1 2 3 4 B C E C Package1) SOT-223 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-bas.

Q62702-C2130_SiemensSemiconductorGroup.pdf

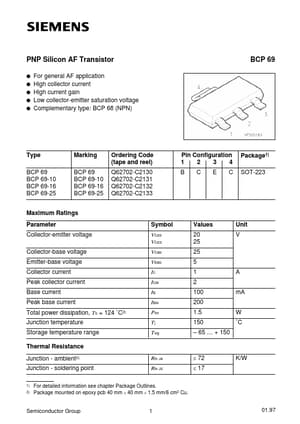

Q62702-C2130 Datasheet Preview — Preview of Q62702-C2130 PDF

Datasheet Details

Part number:

Q62702-C2130

Manufacturer:

Siemens Semiconductor Group

File Size:

136.39 KB

Description:

Pnp silicon af transistor (for general af application high collector current high current gain).
