Q62702-C2325 Datasheet - Siemens Semiconductor Group

Q62702-C2325 PNP Silicon AF Transistor (For general AF applications High collector current High current gain)

BC 807-16W PNP Silicon AF Transistor For general AF applications High collector current High current gain Low collector-emitter saturation voltage Complementary types: BC817W, BC818W (NPN) Type BC 807-16W BC 807-25W BC 807-40W BC 808-16W BC 808-25W BC 808-40W Marking Ordering Code 5As 5Bs 5Cs 5Es 5Fs 5Gs Q62702-C2325 Q62702-C2326 Q62702-C2327 Q62702-C2328 Q62702-C2329 Q62702-C2330 Pin Configuration 1=B 1=B 1=B 1=B 1=B 1=B 2=E 2=E 2=E 2=E 2=E 2.

Q62702-C2325 Datasheet (91.16 KB)

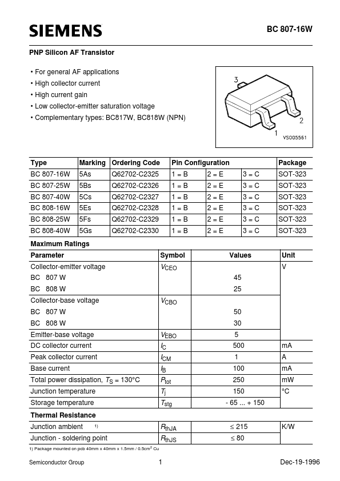

Q62702-C2325 Datasheet Preview — Preview of Q62702-C2325 PDF

Datasheet Details

Part number:

Q62702-C2325

Manufacturer:

Siemens Semiconductor Group

File Size:

91.16 KB

Description:

Pnp silicon af transistor (for general af applications high collector current high current gain).
