Q62702-C2414 NPN Silicon Digital Transistor Array (Switching circuit/ inverter/ interface circuit/ driver circuit)

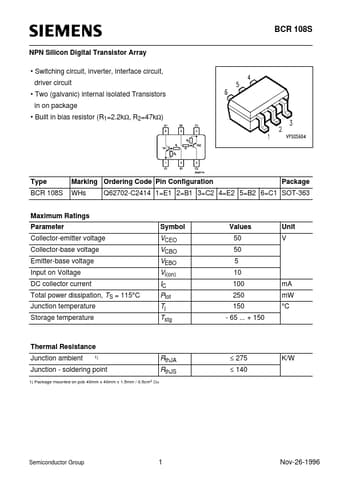

BCR 108S NPN Silicon Digital Transistor Array Switching circuit, inverter, interface circuit, driver circuit Two (galvanic) internal isolated Transistors in on package Built in bias resistor (R1=2.2kΩ, R2=47kΩ) Type BCR 108S Marking Ordering Code Pin Configuration WHs Package Q62702-C2414 1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Tot.

Q62702-C2414_SiemensSemiconductorGroup.pdf

Q62702-C2414 Datasheet Preview — Preview of Q62702-C2414 PDF

Datasheet Details

Part number:

Q62702-C2414

Manufacturer:

Siemens Semiconductor Group

File Size:

43.95 KB

Description:

Npn silicon digital transistor array (switching circuit/ inverter/ interface circuit/ driver circuit).
