Q62702-C2416 Datasheet - Siemens Semiconductor Group

Q62702-C2416 NPN Silicon Digital Transistor Array (Switching circuit/ inverter/ interface/ driver circuit)

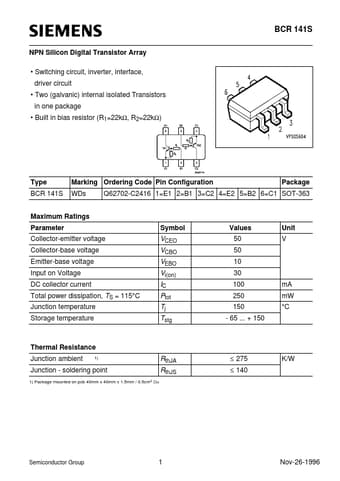

BCR 141S NPN Silicon Digital Transistor Array Switching circuit, inverter, interface, driver circuit Two (galvanic) internal isolated Transistors in one package Built in bias resistor (R1=22kΩ, R2=22kΩ) Type BCR 141S Marking Ordering Code Pin Configuration WDs Package Q62702-C2416 1=E1 2=B1 3=C2 4=E2 5=B2 6=C1 SOT-363 Maximum Ratings Parameter Collector-emitter voltage Collector-base voltage Emitter-base voltage Input on Voltage DC collector current Total power.

Q62702-C2416_SiemensSemiconductorGroup.pdf

Q62702-C2416 Datasheet Preview — Preview of Q62702-C2416 PDF

Datasheet Details

Part number:

Q62702-C2416

Manufacturer:

Siemens Semiconductor Group

File Size:

43.83 KB

Description:

Npn silicon digital transistor array (switching circuit/ inverter/ interface/ driver circuit).
