SLX24C04 Datasheet - Siemens Semiconductor Group

SLX24C04 4 Kbit 512 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus

Serial Clock (SCL) The SCL input is used to clock data into the device on the rising edge and to clock data out of the device on the falling edge. Serial Data (SDA) SDA is a bidirectional pin used to transfer addresses, data or control information into the device or to transfer data out of the devic.

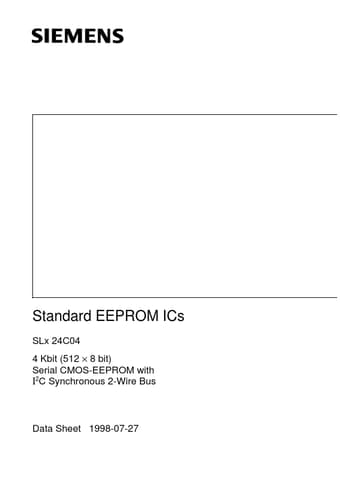

Standard EEPROM ICs SLx 24C04 4 Kbit (512 × 8 bit) Serial CMOS-EEPROM with I2C Synchronous 2-Wire Bus Data Sheet 1998-07-27 SLx 24C04 Revision History: Previous Version: Page Page (in previous (in current Version) Version) 3 4, 5 5 5 11, 12 15 19 20 20 20 I2C Bus Current Version: 1998-07-27 06.97 Subjects (major changes since last revision) 3 4, 4 5 11, 12 15 19 20 20 20 Text was changed to “Typical programming time 5 ms for up to 16 bytes”. CS0, CS1 and CS2 were replaced by n.c. .

SLX24C04 Features

* Data EEPROM internally organized as 512 bytes and 32 pages × 16 bytes

* Low power CMOS

* VCC = 2.7 to 5.5 V operation

* Two wire serial interface bus, I2C-Bus compatible

* Filtered inputs for noise suppression with Schmitt trigger

* Clock frequency u

SLX24C04_SiemensSemiconductorGroup.pdf

SLX24C04 Datasheet Preview — Preview of SLX24C04 PDF

Datasheet Details

Part number:

SLX24C04

Manufacturer:

Siemens Semiconductor Group

File Size:

314.38 KB

Description:

4 kbit 512 x 8 bit serial cmos eeproms/ i2c synchronous 2-wire bus.
