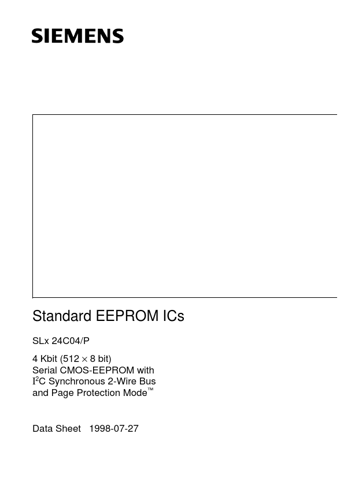

Standard EEPROM ICs SLx 24C04/P 4 Kbit (512 × 8 bit) Serial CMOS-EEPROM with I2C Synchronous 2-Wire Bus and Page Protection Mode™ Data Sheet 1998-07-27 SLx 24C04/P Revision History: Previous Version: Page Page (in previous (in current Version) Version) 3 4, 5 5 5 11, 12 15 21 19 25 25 25 I2C Bus Current Version: 1998-07-27 06.97 Subjects (major changes since last revision) 3 4, 4 5 11, 12 15 21 24 25 25 25 Text was changed to “Typical programming time 5 ms for up to 16 bytes”. CS0.

SLX24C04P Features

* Data EEPROM internally organized as 512 bytes and 32 pages × 16 bytes

* Page protection mode, flexible page-by-page hardware write protection

* Additional protection EEPROM of 32 bits, 1 bit per data page P-DIP-8-4

* Protection setting for each data page by writing

SLX24C04P General Description

Serial Clock (SCL) The SCL input is used to clock data into the device on the rising edge and to clock data out of the device on the falling edge. Serial Data (SDA) SDA is a bidirectional pin used to transfer addresses, data or control information into the device or to transfer data out of the devic.

SLX24C04P Datasheet (358.46 KB)

SLX24C04P Datasheet Preview — Preview of SLX24C04P PDF

Datasheet Details

Part number:

SLX24C04P

Manufacturer:

Siemens Semiconductor Group

File Size:

358.46 KB

Description:

4 kbit 512 x 8 bit serial cmos eeproms/ i2c synchronous 2-wire bus/ page protection mode.
