SLX24C0816P Datasheet - Siemens Semiconductor Group

SLX24C0816P 8/16 Kbit 1024/2048 x 8 bit Serial CMOS EEPROMs/ I2C Synchronous 2-Wire Bus/ Page Protection Mode

Serial Clock (SCL) The SCL input is used to clock data into the device on the rising edge and to clock data out of the device on the falling edge. Serial Data (SDA) SDA is a bidirectional pin used to transfer addresses, data or control information into the device or to transfer data out of the devic.

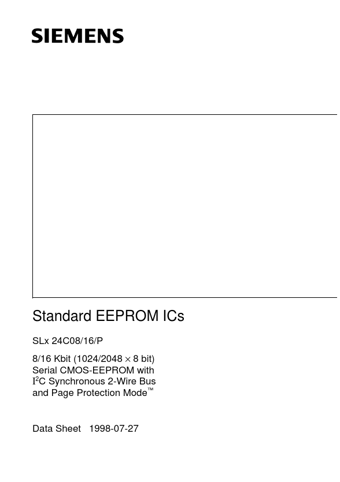

Standard EEPROM ICs SLx 24C08/16/P 8/16 Kbit (1024/2048 × 8 bit) Serial CMOS-EEPROM with I2C Synchronous 2-Wire Bus and Page Protection Mode™ Data Sheet 1998-07-27 SLx 24C08/16/P Revision History: Previous Version: Page Page (in previous (in current Version) Version) 3 4, 5 5 5 11, 12 15 21 19 25 25 25 3 4, 5 5 11, 12 15 21 24 25 25 25 Current Version: 1998-07-27 06.97 Subjects (major changes since last revision) Text was changed to “Typical programming time 5 ms for up to 16 bytes.

SLX24C0816P Features

* Data EEPROM internally organized as 1024/2048 bytes and 64/128 pages × 16 bytes

* Page protection mode, flexible page-by-page hardware write protection

* Additional protection EEPROM of 64/128 bits, 1 bit per data page P-DIP-8-4

* Protection setting for each data pa

SLX24C0816P_SiemensSemiconductorGroup.pdf

SLX24C0816P Datasheet Preview — Preview of SLX24C0816P PDF

Datasheet Details

Part number:

SLX24C0816P

Manufacturer:

Siemens Semiconductor Group

File Size:

362.28 KB

Description:

8/16 kbit 1024/2048 x 8 bit serial cmos eeproms/ i2c synchronous 2-wire bus/ page protection mode.
