Datasheet Specifications
- Part number
- HYM72V4000GS-60
- Manufacturer
- Siemens
- File Size
- 68.32 KB
- Datasheet
- HYM72V4000GS-60_SiemensSemiconductorGroup.pdf
- Description
- 4M x 72-Bit Dynamic RAM Module
Description

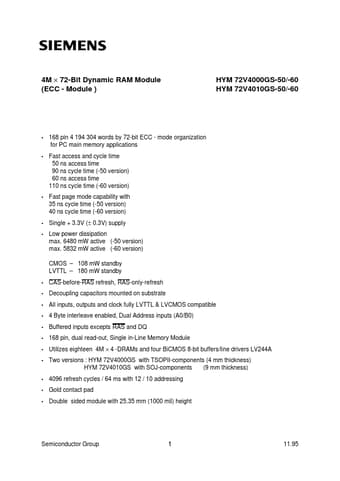

4M × 72-Bit Dynamic RAM Module (ECC - Module ) HYM 72V4000GS-50/-60 HYM 72V4010GS-50/-60 * 168 pin 4 194 304 words by 72-bit ECC - mode org.
Applications
* Fast access and cycle time 50 ns access time 90 ns cycle time (-50 version) 60 ns access time 110 ns cycle time (-60 version) Fast page mode capability with 35 ns cycle time (-50 version) 40 ns cycle time (-60 version) Single + 3.3V ( ± 0.3V) supply Low power dissipation max. 6480 mW active (-50 verHYM72V4000GS-60 Distributors
