SDA9188-3X

Picture-in-Picture Processor with On-Chip PLL

SDA9188-3X Features

* q On-chip PLL q Full frame display for 50/60 Hz in order to increase the vertical resolution and to suppress moving artifacts. q Compatibility to the 16:9 display format by means of q q q q q q independent setting of the vertical and horizontal decimation factors and the width of the border fram

SDA9188-3X General Description

Ordering Code Q67100-H5142 Package P-DSO-28-3 (350 mil) (SMD) The SDA 9188-3X Picture-in-Picture (PIP) processor with on-chip PLL combines two asynchronous picture sources so that a small moving picture (the inset picture) can be superimposed in a moving picture of normal size (the parent picture.

SDA9188-3X Datasheet (462.99 KB)

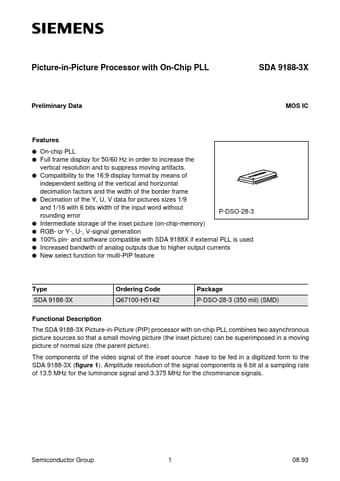

Preview of SDA9188-3X PDF

Datasheet Details

Part number:

SDA9188-3X

Manufacturer:

Siemens

File Size:

462.99 KB

Description:

Picture-in-picture processor with on-chip pll.
