V23042-B2203-B101, V23042 - Small relay

Siemens

📥 Download Datasheet

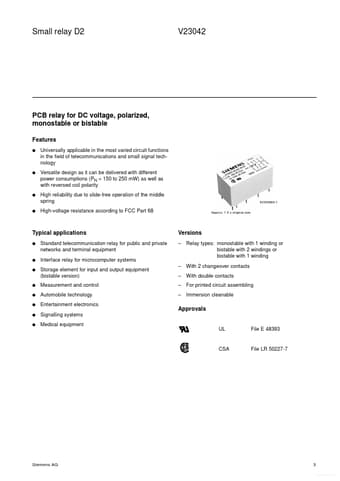

V23042-B2203-B101 Datasheet Preview — This datasheet PDF includes multiple part numbers: V23042-B2203-B101, V23042. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	V23042-B2203-B101, V23042
Manufacturer	Siemens
File Size	321.22 KB
Description	Small relay
Datasheet	V23042_Siemens.pdf
Note	This datasheet PDF includes multiple part numbers: V23042-B2203-B101, V23042. Please refer to the document for exact specifications by model.

V23042-B2203-B101 Product details

Features

q Universally applicable in the most varied circuit functions in the field of telecommunications and small signal technology Versatile design as it can be delivered with different power consumptions (PN = 150 to 250 mW) as well as with reversed coil polarity High reliability due to slide-free operation of the middle spring High-voltage resistance according to FCC Part 68 Approx. 1.5 x original size q q ECR0983-1 q Typical.
