54S301 Datasheet, Ram, Signetics

54S301 Features

  • Ram
  • ORGANIZATION - 256 X 1
  • ADDRESS ACCESS TIME: S54S200/201/301 - 70ns MAXI MUM N74S200/201/301 - 50 ns MAXIMUM
  • WRITE CYCLE TIME: S54S200/201/301 - 60ns MAXIMU

PDF File Details

Part number:

54S301

Manufacturer:

Signetics

File Size:

194.58kb

Download:

📄 Datasheet

Description:

Ttl 256 x 1 ram. The 54/74S200/201 and 54/74S301 are Schottky clamped TTL, read/write memory arrays organized as 256 words of one bit each. They featu

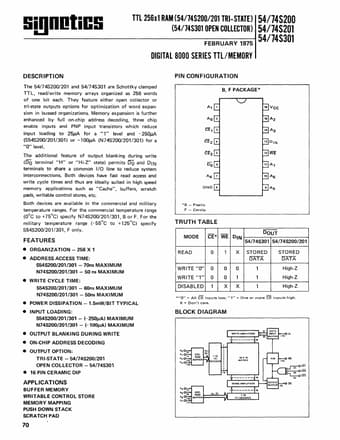

Datasheet Preview: 54S301 📥 Download PDF (194.58kb)
Page 2 of 54S301 Page 3 of 54S301

54S301 Application

  • Applications such as "Cache", buffers, scratch pads, writable control stores, etc. Both devices are available in the commercial and military tempera
