SA1088 Datasheet - Silan Microelectronics

SA1088 - FM RECEIVER

The SA1088 is a bipolar integrated circuit for use in mono portable and pocket radios.

It is used when a minimum of perpheral components (of small dimensions and low costs) is important.

The circuit contains a frequency-locked-loop(FLL) system with an intermediate frequency(IF) of about 70kHz.

Selec

SA1088 Features

* Equipped with all stages of a mono receiver from antenna to audio output.

* Mute Circuit

* Search tuning with a single varicap diode

* Mechanical tuning with integrating AFC

* AM application supported

* Power supply polarity protection

* Power supply voltage down to 1.8

SA1088_SilanMicroelectronics.pdf

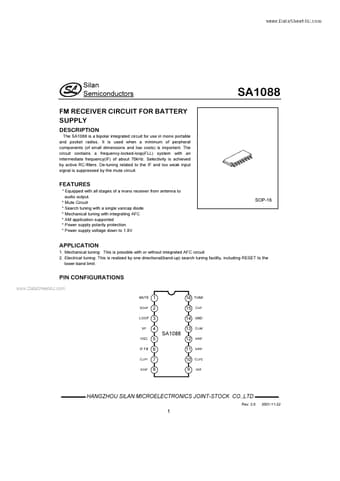

Preview of SA1088 PDF
SA1088 Datasheet Preview Page 2 SA1088 Datasheet Preview Page 3

Datasheet Details

Part number:

SA1088

Manufacturer:

Silan Microelectronics

File Size:

400.71 KB

Description:

Fm receiver.
