SVD540D 100V N-CHANNEL MOSFET

2 SVD540T/D/K/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary new type of flat low-voltage structure VDMOS technology. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide super.

SVD540D Features

* 1 3 1.Gate 2.Drain 3.Source 1 3 TO-252-2L 1 23 TO-220F-3L

* 33A,100V,RDS(on)(typ.)=34m@VGS=10V

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability 12 3 TO-220-3L 1 23 TO-262-3L ORDERING INFORMATION Part No. SVD540T SVD540DTR SVD540K SVD540F Package

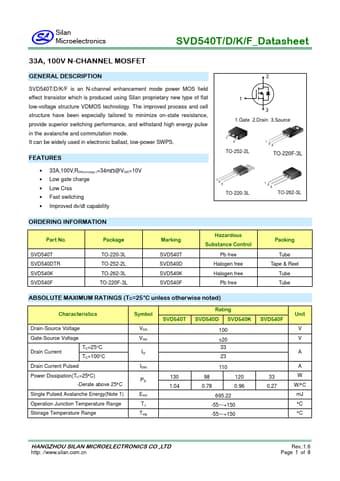

SVD540T-SilanMicroelectronics.pdf

SVD540D Datasheet Preview — This datasheet PDF includes multiple part numbers: SVD540D, SVD540T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SVD540D, SVD540T

Manufacturer:

Silan Microelectronics

File Size:

367.96 KB

Description:

100v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVD540D, SVD540T.
Please refer to the document for exact specifications by model.
