SVD101 - X Band VCO / PLO

Sanyo Semicon Device

📥 Download Datasheet

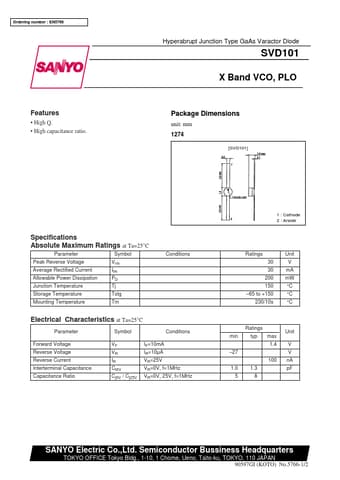

SVD101 Datasheet Preview — Preview of SVD101 PDF

datasheet Preview Page 2

Datasheet Details

Part number	SVD101
Manufacturer	Sanyo Semicon Device
File Size	71.19 KB
Description	X Band VCO / PLO
Datasheet	SVD101_SanyoSemiconDevice.pdf

SVD101 Product details

Features

High Q.
High capacitance ratio. Package Dimensions unit: mm 1274 [SVD101] 1 : Cathode 2 : Anode Specifications Absolute Maximum Ratings at Ta=25°C Parameter Peak Reverse Voltage Average Rectified Current Allowable Power Dissipation Junction Temperature Storage Temperature Mounting Temperature Symbol Vrm Ifm PD Tj Tstg Tm Conditions Ratings 30 30 200 150.
65 to +150 230/10s Unit V mA mW °C °C °C Electrical Characteristics at Ta=25°C Parameter Forward Voltage Revers.
