SVD10N65T - 650V N-CHANNEL MOSFET

Silan Microelectronics

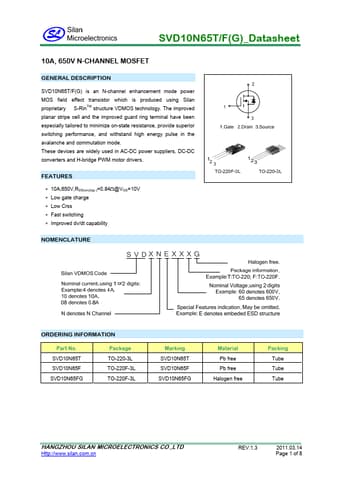

SVD10N65T Datasheet Preview — Preview of SVD10N65T PDF

Datasheet Details

Part number	SVD10N65T
Manufacturer	Silan Microelectronics
File Size	660.21 KB
Description	650V N-CHANNEL MOSFET
Datasheet	SVD10N65T-SilanMicroelectronics.pdf

SVD10N65T Product details

Description

SVD10N65T/F(G) is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure VDMOS technology.The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power suppliers, DC-DC converters and H-bridge PWM moto

Features

∗ 10A,650V,RDS(on)(typ. )=0.84Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability.
