SVD1055SA Datasheet - Silan Microelectronics

55V N/P-CHANNEL MOSFET

SVD1055SA Features

* Low gate charge

* Low Crss

* Fast switching

* Improved dv/dt capability ORDERING INFORMATION Part No. SVD1055SA SVD1055SATR Package SOP-8-225-1.27 SOP-8-225-1.27 Marking SVD1055SA SVD1055SA Hazardous substance control Halogen free Halogen free ABSOLUTE MAXIMUM RATINGS (TC=25

SVD1055SA General Description

SVD1055SA is a combination device packaged with an N-channel and a P-channel enhancement mode MOS FET, which is produced using Silan proprietary low-voltage planar VDMOS process. The improved process and cell structure have been especially tailored to minimize on-state resistance, provide superior s.

SVD1055SA Datasheet (333.72 KB)

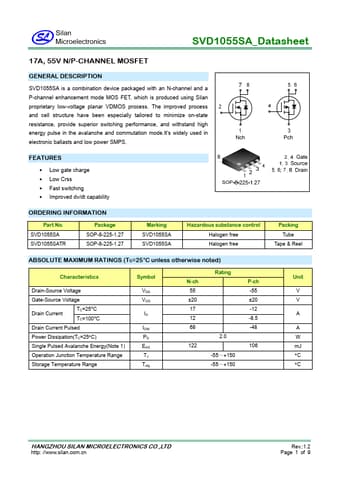

SVD1055SA Datasheet Preview — Preview of SVD1055SA PDF

Datasheet Details

Part number:

SVD1055SA

Manufacturer:

Silan Microelectronics

File Size:

333.72 KB

Description:

55v n/p-channel mosfet.
