SVD12N60T Datasheet - Silan Microelectronics

600V N-CHANNEL MOSFET

SVD12N60T Features

* ∗ 12A,600V,RDS(on)(typ)=0.58Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability NOMENCLATURE ORDERING SPECIFICATIONS Part No. SVD12N60T SVD12N60F Package TO-220-3L TO-220F-3L Marking SVD12N60T SVD12N60F Material Pb free Pb free Packing Tube Tube HANGZHOU SILAN MICR

SVD12N60T General Description

SVD12N60T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure DMOS technology. The improved planar stripe cell and the improved guarding ring terminal have been especially tailored to minimize on-state resistance, provid.

SVD12N60T Datasheet (685.40 KB)

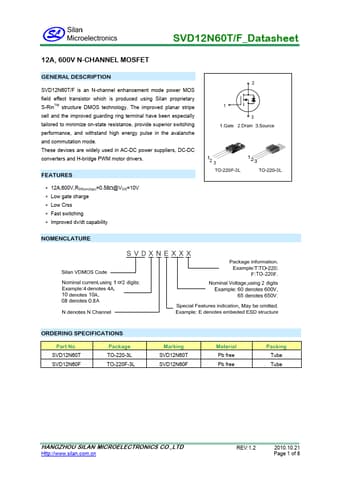

SVD12N60T Datasheet Preview — Preview of SVD12N60T PDF

Datasheet Details

Part number:

SVD12N60T

Manufacturer:

Silan Microelectronics

File Size:

685.40 KB

Description:

600v n-channel mosfet.
