SVD12N65T - 650V N-CHANNEL MOSFET

The SVD12N65T by Silan Microelectronics is a 650V N-CHANNEL MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

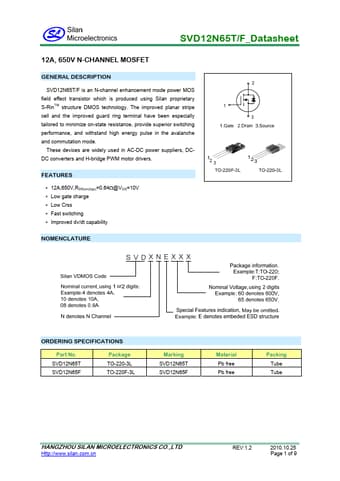

Official preview page of the SVD12N65T 650V N-CHANNEL MOSFET datasheet (Silan Microelectronics).

Datasheet Details

Part number SVD12N65T
Manufacturer Silan Microelectronics
File Size 555.38 KB
Description 650V N-CHANNEL MOSFET
Datasheet download datasheet SVD12N65T-SilanMicroelectronics.pdf
Additional preview pages of the SVD12N65T datasheet.

SVD12N65T Product details

Description

SVD12N65T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-Rin TM structure DMOS technology.The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode.These devices are widely used in AC-DC power suppliers, DCDC converters and H-bridge PWM motor dri

Features
