SVD730F, SVD730D Datasheet - Silan Microelectronics

SVD730F 400V N-CHANNEL MOSFET

SVD730D/F/T is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-RinTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide sup.

SVD730F Features

* ∗ 5.5A,400V,RDS(on)（typ）=0.9Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING INFORMATION Part No. SVD730T SVD730F SVD730D SVD730DTR Package TO-220-3L TO-220F-3L TO-252-2L TO-252-2L Marking SVD730T SVD730F SVD730D SVD730D Material Pb free Pb free Pb fr

SVD730D-SilanMicroelectronics.pdf

This datasheet PDF includes multiple part numbers: SVD730F, SVD730D. Please refer to the document for exact specifications by model.

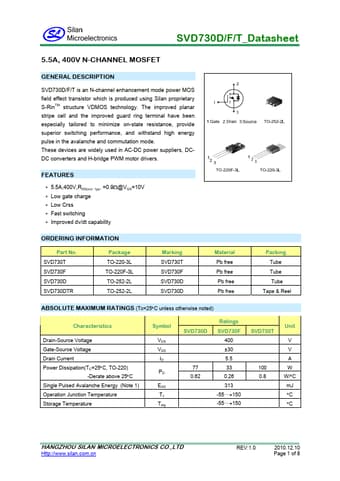

SVD730F Datasheet Preview Page 2 SVD730F Datasheet Preview Page 3

Datasheet Details

Part number:

SVD730F, SVD730D

Manufacturer:

Silan Microelectronics

File Size:

622.36 KB

Description:

400v n-channel mosfet.

Note:

This datasheet PDF includes multiple part numbers: SVD730F, SVD730D.
Please refer to the document for exact specifications by model.
