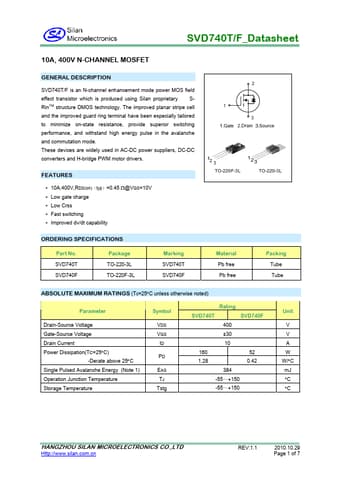

SVD740T 400V N-CHANNEL MOSFET

SVD740T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary Rin TM S- structure DMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide s.

SVD740T Features

* ∗ 10A,400V,RDS(on)（typ）=0.45 Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING SPECIFICATIONS Part No. SVD740T SVD740F Package TO-220-3L TO-220F-3L Marking SVD740T SVD740F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless
