SVD840T Datasheet - Silan Microelectronics

500V N-CHANNEL MOSFET

SVD840T Features

* ∗ 8A,500V,RDS(on)（typ）=0.62Ω@VGS=10V ∗ Low gate charge ∗ Low Crss ∗ Fast switching ∗ Improved dv/dt capability ORDERING INFORMATION Part No. SVD840T SVD840F Package TO-220-3L TO-220F-3L Marking SVD840T SVD840F Material Pb free Pb free Packing Tube Tube ABSOLUTE MAXIMUM RATINGS (Tc=25°C unless

SVD840T General Description

SVD840T/F is an N-channel enhancement mode power MOS field effect transistor which is produced using Silan proprietary S-RinTM structure VDMOS technology. The improved planar stripe cell and the improved guard ring terminal have been especially tailored to minimize on-state resistance, provide super.

SVD840T Datasheet (525.25 KB)

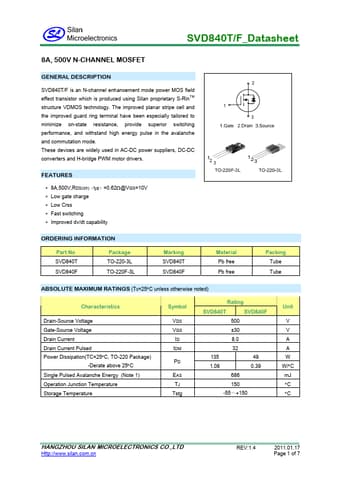

SVD840T Datasheet Preview — Preview of SVD840T PDF

Datasheet Details

Part number:

SVD840T

Manufacturer:

Silan Microelectronics

File Size:

525.25 KB

Description:

500v n-channel mosfet.
