SC9270

DTMF DEMODULATOR WITH FILTER AND DIGITAL DECODER

SC9270 Features

* DIP-18-300-2.54

* Excellent performance

* CMOS, single 5 volt operation,

* Widely operating voltage: 1.2V ~ 5.25V

* Minimum board area

* Central office quality

* Low power consumption

* Power-Down mode (SC9270D only)

* Inhibit-mode (SC9270D only) APPLICATIONS

SC9270 General Description

The SC9270C/D is a complete DTMF receiver integrating both the bandsplit filter and digital decoder functions. The filter section uses switched capacitor techniques for high- and low-group filters and dialtone rejection. Digital counting techniques are employed in the decoder to detect and decode a.

SC9270 Datasheet (234.26 KB)

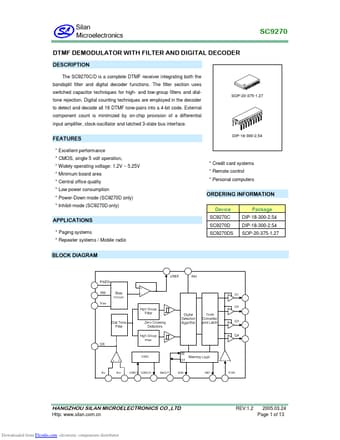

Preview of SC9270 PDF

Datasheet Details

Part number:

SC9270

Manufacturer:

Silan Semiconductors

File Size:

234.26 KB

Description:

Dtmf demodulator with filter and digital decoder.
