MAX71335S

Poly- and Single-Phase Energy Meter SoCs

MAX71335S Features

* Dual-core Architecture for Maximum Performance and Flexibility in 128-Pin LQFP

* 32-Bit MAXQ30 MPU Core with 256/512KB Flash, 32KB Data NV-RAM (Shared with CE Data RAM), Up to 20MHz

* 32-Bit Computing Engine (CE) with Separate 16KB Program and Data RAM, 40MHz, and Single

MAX71335S General Description

The ZON™ P5S/P5SL (MAX71336S/MAX71335S) and ZON M5S/M5SL (MAX71316S/MAX71315S) are very lowpower poly- and single-phase metering systems-on-chips (SoCs) that comprise a 20MHz MAXQ30 MPU core, realtime clock (RTC) with digital temperature compensation, flash memory, LCD drivers and a single-cycle 32 .

MAX71335S Datasheet (1.98 MB)

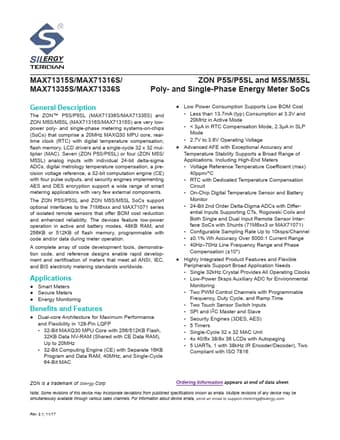

Preview of MAX71335S PDF

Datasheet Details

Part number:

MAX71335S

Manufacturer:

Silergy

File Size:

1.98 MB

Description:

Poly- and single-phase energy meter socs.
